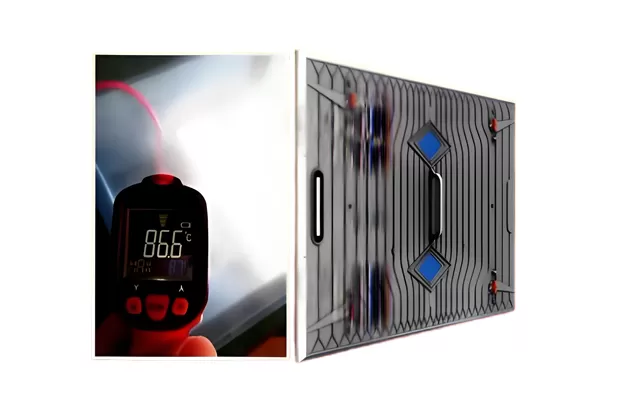

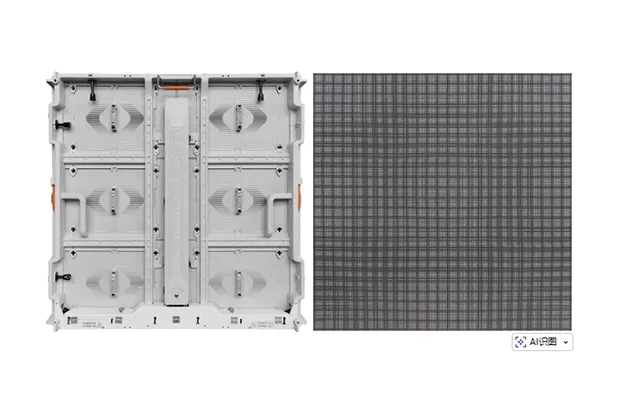

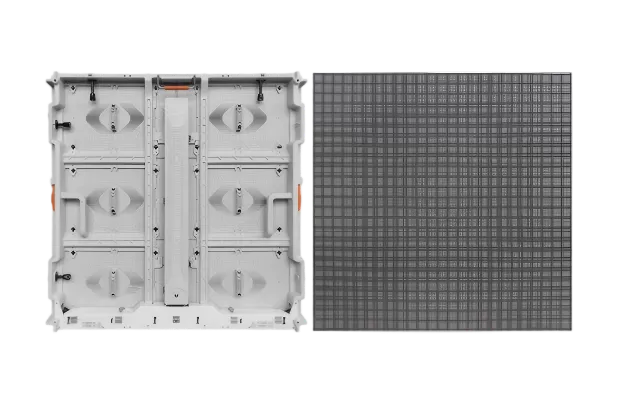

(Carcasa de aluminio fundido a presión) Pantalla de aluminio a todo color de alto brillo para exteriores (alta frecuencia de actualización de 7680 Hz; brillo de hasta 12000 cd; alta relación de contraste de 15000:1)
| Parámetros (cátodo común) | ||||||
| Artículo | P3.33 | P4.44 | P5.7 | P6.67 | P8 | P10 |
| Composición de píxeles (SMD) | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Paso de píxeles (mm) | 3.33 | 4.44 | 5.7 | 6.67 | 8 | 10 |
| Resolución del módulo (Ancho × Alto) | 144×96 | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 |

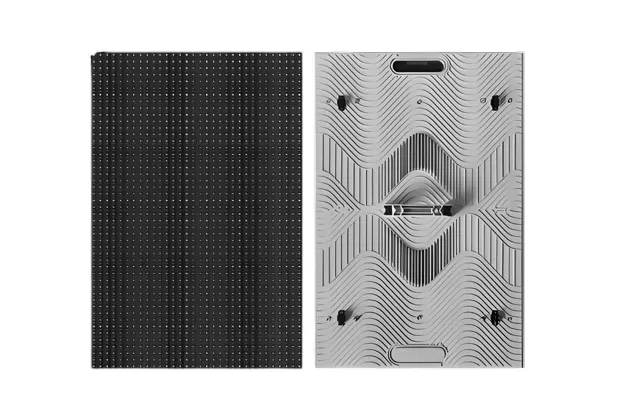

| Tamaño del módulo (mm) | 480×320×16 | |||||
| Peso del módulo (kg) | 2 | |||||
| Cantidad de módulos/gabinete (ancho × alto) | 2×3 | |||||
| Resolución del gabinete (Ancho × Alto) | 288×288 | 216×216 | 168×168 | 144×144 | 120×120 | 96×96 |

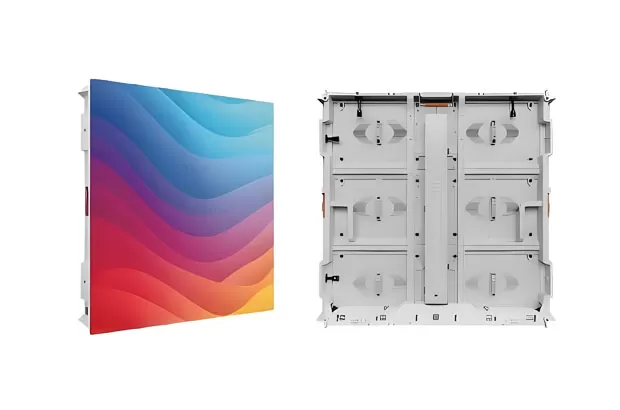

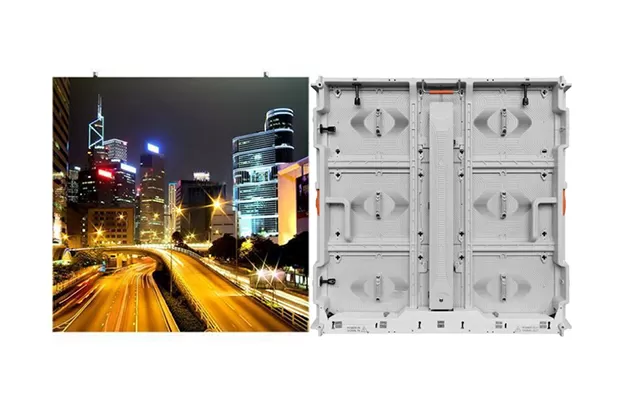

| Tamaño del gabinete (mm) | 960×960×87 | |||||
| Superficie del armario (m²) | 0.92 | |||||
| Peso del gabinete (kg/gabinete) | 24.5 | |||||
| Material del gabinete | Gabinete de aluminio fundido a presión | |||||
| Densidad de gabinetes (puntos/m²) | 90000 | 50625 | 30625 | 22500 | 15625 | 10000 |
| Clasificación IP | IP66 | |||||
| Brillo del balance de blancos (nits) | ≥4500 nits | ≥5000 nits | ≥5000nits | ≥5500 nits | ≥5500nits | ≥6000 nits |
| Procesador de color (bit) | 16bit | |||||
| Temperatura de color (K) | 6500-9000 | |||||
| Ángulo visual (H/V) | 140°/120° | |||||
| Desviación del centro del punto luminoso | <3% | |||||
| Uniformidad de luminancia | ≥97% | |||||
| Uniformidad cromática | Dentro de ±0,003Cx,Cy | |||||
| Relación de contraste | ≥15000:1 | |||||
| Consumo máximo de energía (W/m²) | 550 | 550 | 550 | 550 | 550 | 550 |
| Consumo medio de energía (W/m²) | 186 | 186 | 186 | 186 | 186 | 186 |
| Voltaje de entrada | CA 100~240V | |||||
| Frecuencia (Hz) | 50 y 60 | |||||
| Control IC (escaneo) | 1/12escanear | 1/9escanear | 1/7escanear | 1/6escanear | 1/3escanear | 1/2escanear |
| Frecuencia de actualización (Hz) | 3840 | |||||
| Método de mantenimiento | Mantenimiento delantero y trasero | |||||
| Esperanza de vida (horas) | 100,000 | |||||

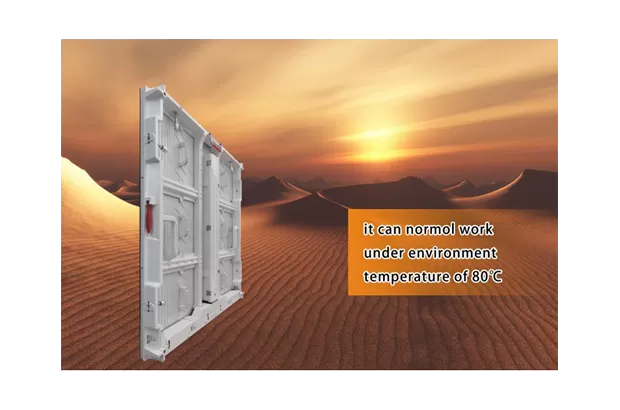

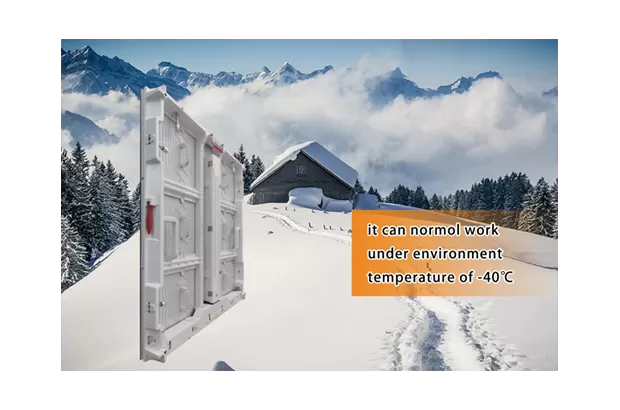

| Temperatura/Humedad de trabajo | -40℃-80℃/10%HR-98%HR (sin condensación) | |||||
| Temperatura/Humedad de almacenamiento | -20℃-60℃/10%HR-98%HR (sin condensación) | |||||
| Parámetros (ánodo común) | ||||||
| Item | P3.33 | P4.44 | P5.7 | P6.67 | P8 | P10 |
| Pixel Composition(SMD) | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 3.33 | 4.44 | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 144×96 | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size(mm) | 480×320×16 | |||||
| Module Weight(kg) | 2 | |||||
| Module Qty/Cabinet(W×H) | 2×3 | |||||
| Cabinet Resolution(W×H) | 288×288 | 216×216 | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Size(mm) | 960×960×87 | |||||
| Cabinet Area(m²) | 0.92 | |||||
| Cabinet Weight(kg/cabinet) | 24.5 | |||||
| Cabinet Material | Die cast aluminum cabinet | |||||
| Cabinet Density (dot/m²) | 90000 | 50625 | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | |||||
| White Balance Brightness(nits) | ≥4500nits | ≥5000nits | ≥5000nits | ≥5500nits | ≥5500nits | ≥6000nits |
| Color Processor(bit) | 16bit | |||||
| Color Temperature(K) | 6500-9000 | |||||
| Visual Angle(H/V) | 140°/120° | |||||
| Luminous point centre deviation | <3% | |||||
| Luminance uniformity | ≥97% | |||||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||||
| Contrast Ratio | ≥15000:1 | |||||
| The Max Power Consumption(W/m²) | 700 | 700 | 700 | 700 | 700 | 800 |
| Average Power Consumption(W/m²) | 235 | 235 | 235 | 235 | 235 | 268 |
| Input Voltage | AC100~240V | |||||
| Frequency(Hz) | 50&60 | |||||
| IC Driving(scan) | 1/12 scan | 1/9 scan | 1/7 scan | 1/6 scan | 1/3 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | |||||
| Maintenance Method | Front and Rear Maintenance | |||||
| Lifespan(hrs) | 100,000 | |||||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | |||||
| Parámetros (Ultra ahorro de energía) | ||||
| Item | P5.7 | P6.67 | P8 | P10 |
| Pixel Composition(SMD) | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size(mm) | 480×320×16 | |||
| Module Weight(kg) | 2 | |||
| Module Qty/Cabinet(W×H) | 2×3 | |||
| Cabinet Resolution(W×H) | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Size(mm) | 960×960×87 | |||
| Cabinet Area(m²) | 0.92 | |||
| Cabinet Weight(kg/cabinet) | 24.5 | |||
| Cabinet Material | Die cast aluminum cabinet | |||
| Cabinet Density (dot/m²) | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | |||
| White Balance Brightness(nits) | ≥6000nits | ≥6000nits | ≥6000nits | ≥7000 nits |
| Color Processor(bit) | 16bit | |||
| Color Temperature(K) | 6500-9000 | |||
| Visual Angle(H/V) | 140°/120° | |||
| Luminous point centre deviation | <3% | |||
| Luminance uniformity | ≥97% | |||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||
| Contrast Ratio | ≥15000:1 | |||
| The Max Power Consumption(W/m²) | 280 | 280 | 280 | 280 |
| Average Power Consumption(W/m²) | 76 | 76 | 76 | 76 |
| Input Voltage | AC100~240V | |||
| Frequency(Hz) | 50&60 | |||
| IC Driving(scan) | 1/7 scan | 1/6 scan | 1/3 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | |||
| Maintenance Method | Front and Rear Maintenance | |||
| Lifespan(hrs) | 100,000 | |||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | |||
| Parámetros (Superbrillo) | ||||
| Item | P5.7 | P6.67 | P8 | P10 |
| Pixel Composition(SMD) | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size(mm) | 480×320×16 | |||
| Module Weight(kg) | 2 | |||
| Module Qty/Cabinet(W×H) | 2×3 | |||
| Cabinet Resolution(W×H) | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Size(mm) | 960×960×87 | |||
| Cabinet Area(m²) | 0.92 | |||
| Cabinet Weight(kg/cabinet) | 24.5 | |||
| Cabinet Material | Die cast aluminum cabinet | |||
| Cabinet Density (dot/m²) | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | |||
| White Balance Brightness(nits) | ≥12000 nits | ≥12000nits | ≥12000nits | ≥12000nits |
| Color Processor(bit) | 16bit | |||
| Color Temperature(K) | 6500-9000 | |||
| Visual Angle(H/V) | 140°/120° | |||
| Luminous point centre deviation | <3% | |||
| Luminance uniformity | ≥97% | |||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||
| Contrast Ratio | ≥15000:1 | |||
| The Max Power Consumption(W/m²) | 450 | 450 | 450 | 500 |
| Average Power Consumption(W/m²) | 150 | 150 | 150 | 168 |
| Input Voltage | AC100~240V | |||
| Frequency(Hz) | 50&60 | |||
| IC Driving(scan) | Escaneo 1/7 | 1/6 scan | 1/3 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | |||
| Maintenance Method | Front and Rear Maintenance | |||
| Lifespan(hrs) | 100,000 | |||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | |||
La serie FO3 FC se utiliza ampliamente en diversos campos de aplicación en exteriores, tales como fachadas de edificios, jardines colgantes, plazas culturales gubernamentales, estaciones de autobuses, publicidad vertical junto a carreteras, entre otros.

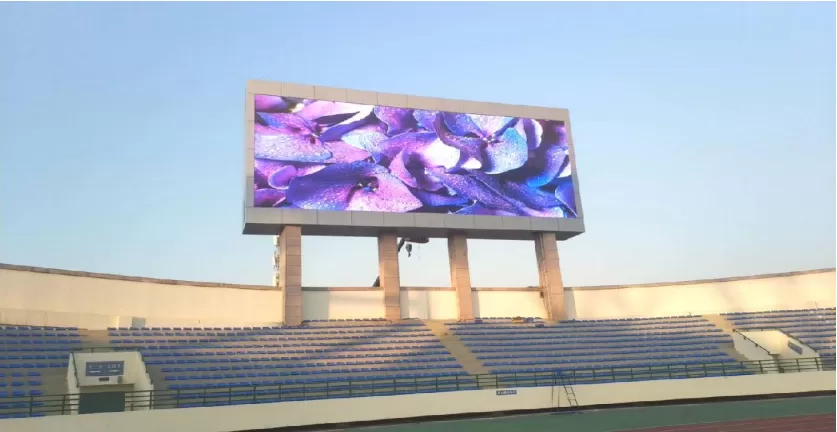

Pantalla de aluminio de doble cara de la Universidad de Zhengzhou (220 m²)

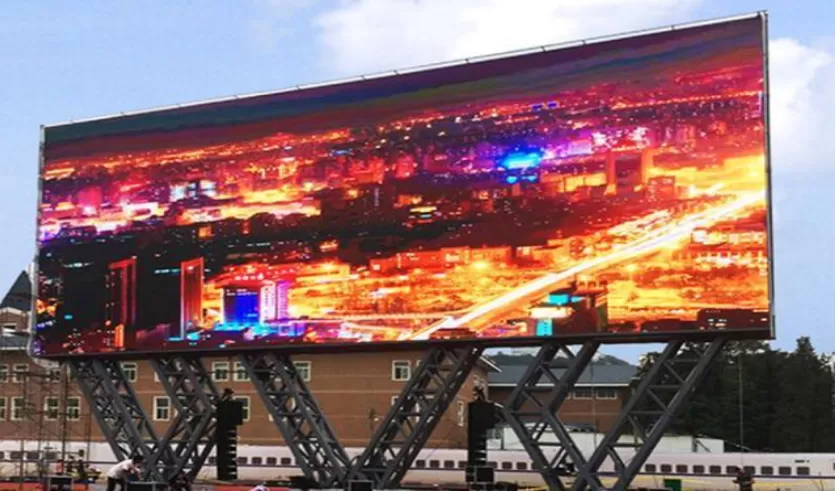

Pantalla de aluminio para el Gimnasio de Jiangyin (280 m²)

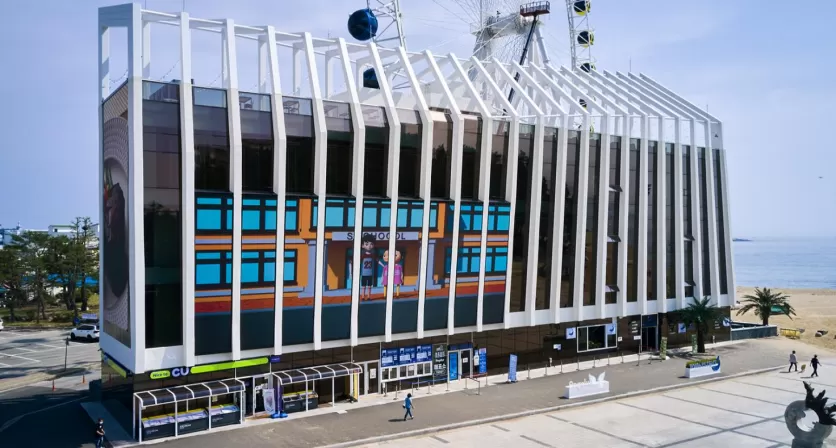

Pantalla de aluminio en el lado sur de la costa de Sokcho, Gangwon-do, Corea del Sur (150 m²)
La serie FO3 FC se utiliza ampliamente en diversos campos de aplicación al aire libre, como la fachada de edificios, jardines colgantes, plazas culturales gubernamentales, estaciones de autobuses, publicidad vertical al borde de la carretera, etc.
Pantalla de aluminio de doble cara de la Universidad de Zhengzhou (220 m²)
Mampara de aluminio para gimnasio Jiangyin (280 m²)
Pantalla de aluminio en el lado sur de la costa de Sokcho, Gangwon-do, Corea del Sur (150 m²)
